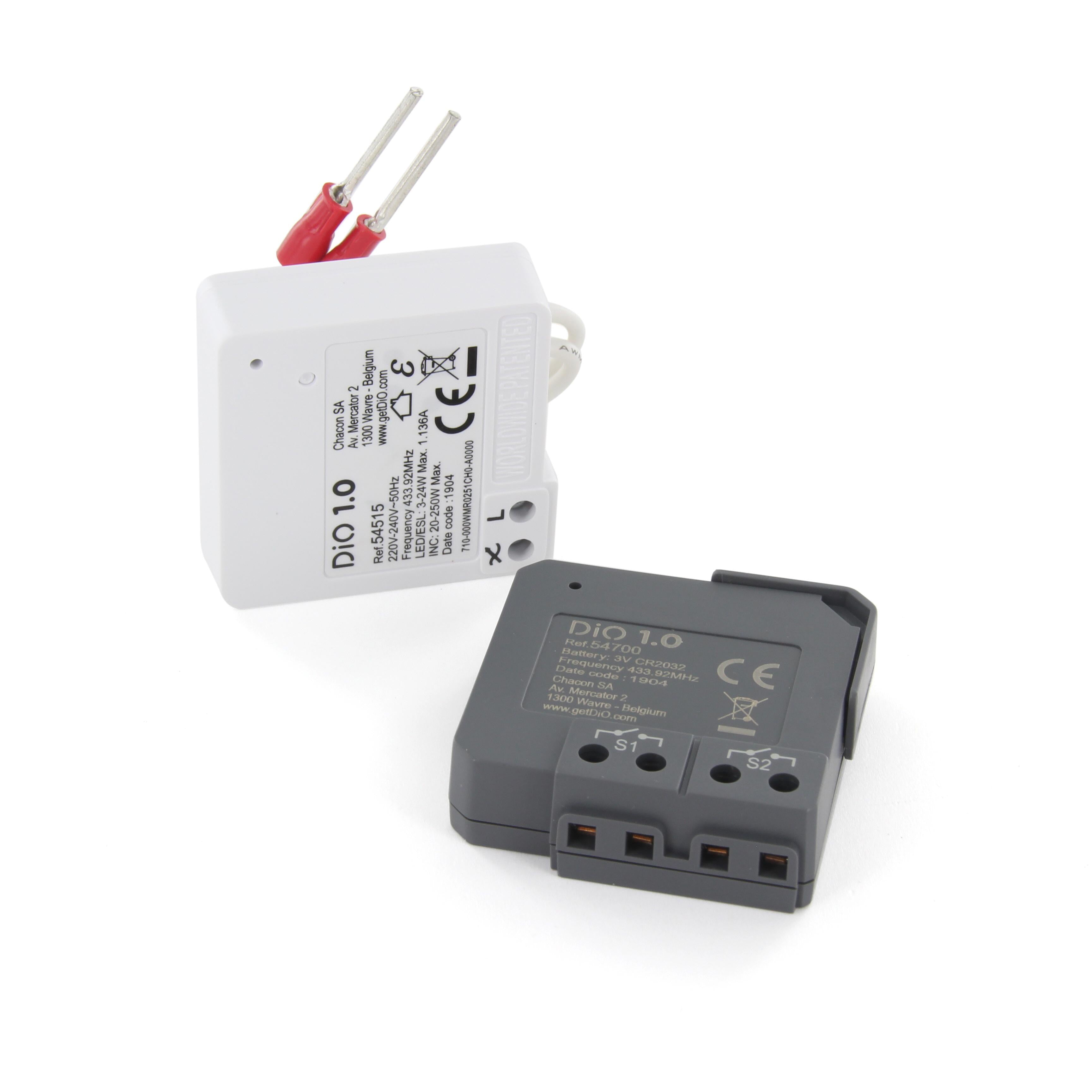

Wechselschaltungsset (Sender- und Empfänger-Mikromodule)
– Übertragungsreichweite: 50 m
– Kanäle: Mikromodul (1 Kanal), Sender (2 Kanäle)
– Stromversorgung: 230 V~ 50 Hz
– Leistung: Max. 250 W
– Abmessungen: 47 x 47 x 20
– Inhalt: Ein/Aus-Mikromodul, Sender, Bedienungsanleitung
Technische Details
| Verwendung | Nur innen |
|---|---|
| UE | 4 |
| Übertragungsabstand | 50m |
| Radiofrequenz | 433,92 MHz by DiO |
| Funkprotokoll | DiO 1.0 |
| Ernährungsart | Batterie |
| Kontrolltyp | On/Off |
| Batterie 1 - Anzahl | 1 |
| Batterie 1- mitgeliefert | enthalten |
| Max. Anzahl an Zubehör | 6 |
| Über Smartphone steuerbar | nicht |
| 1-Typ-Batterie | Lithium CR2032 3V |
| Macht (W) | 250W |
| Anzahl der Kanäle | 2 |
54738 User Manual V1.0 170320 4-taal ok.pdf
Mehr erfahren
Quick installation
Based on your existing installation, create a two-way system without pulling additional electrical cables and without changing your interior design.

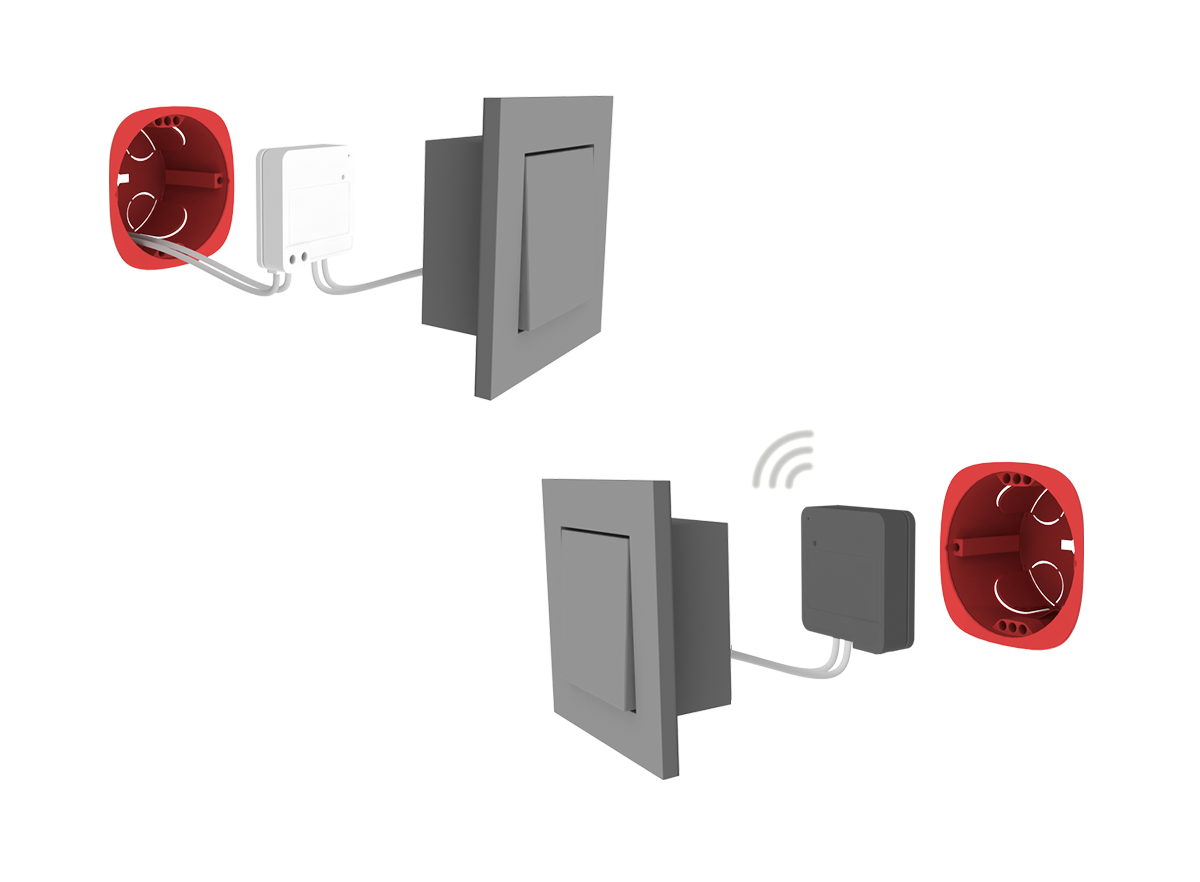

These modules are hidden behind the switches. Simply add an extra switch (transmitter) wherever you want and you can control your luminaires with a simple click.

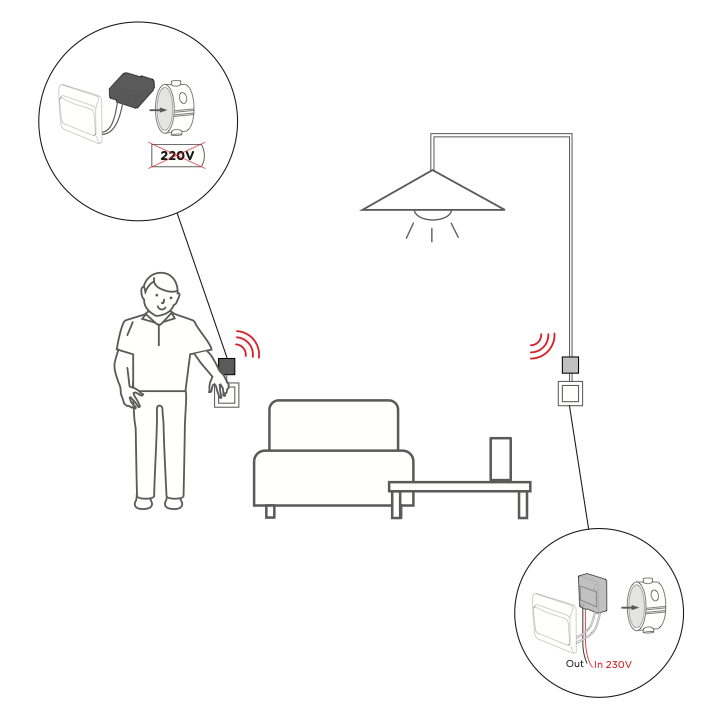

For example, you have a switch badly arranged in your house, or you want to add an additional switch in a room without having to make big works or redo your installation. By associating the 2 modules you create a back and forth between the 2 switches, which allows you to control your lamps with one of the switches.
Personalise your home automation installation
They are 100% compatible with the entire DiO range, so you can build your own system and, above all, upgrade it according to your needs!
