DiO wireless switch and lighting module kit (433Mhz / Zigbee / BLE)
DiO technology makes it possible to place a switch wherever you want, without worrying about electrical cables.

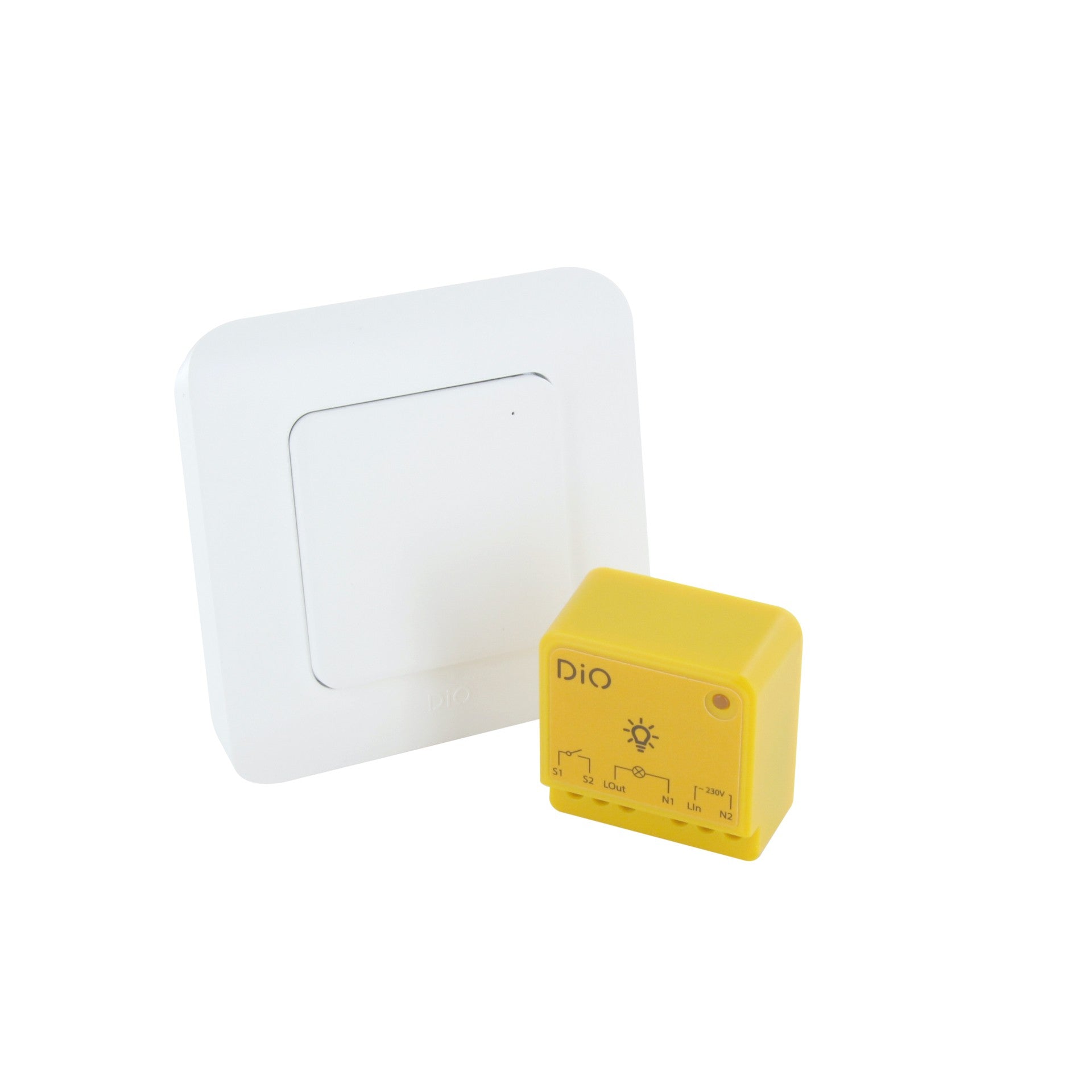

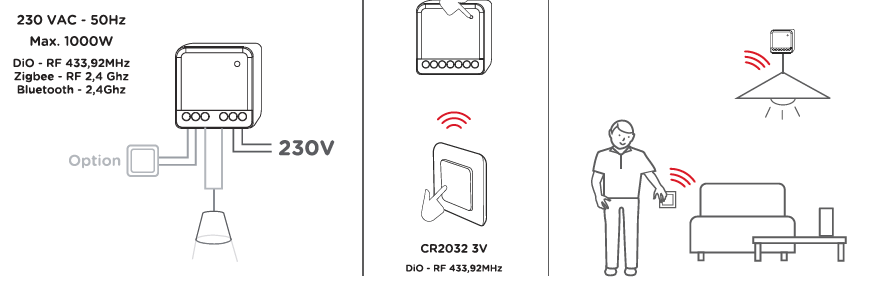

Thanks to the recessed lighting module and wireless switch, you can control your light sources remotely without having to pull a cable.
- Function: On/Off
- Maximum module power: 1000W
- Maximum number of transmitters: up to 6 controls
- Transmission distance: 50m (in open field)
- Multiple connectivity: via a DIO switch / via your smartphone using Bluetooth Low Energy / via your Zigbee 3.0 home automation centre
Technical details
| Use | Indoor only |
|---|---|
| Warranty | 2 years |
| UE | 4 |
| Smartphone control | Yes |
| Color | White |
| Transmission range | 50m |
| Radio frequency | 433,92 MHz by DiO |
| Wireless protocol | DiO 1.0 |
| Type of control | On/Off |
| Battery 1 - Number | 1 |
| Battery 1 - Type | CR2032 3V |
| Connectivity | Bluetooth Low Energy 5.0 / Zigbee 3.0 - 2,4Ghz |
| Content | 1 on/off module, 1 wireless switch, 1 CR2032 3V battery |
55856 EU Declaration of Conformity.pdf
55856 User manual 250221 v1.12 vecto.pdf
More informations
Use:
With the DiO remote control / switch:
- Press the ON / OFF button on your DiO Remote to switch the lighting on / off.
With your smartphone, via DiO One:
- Switch on/off (make sure the module is within Bluetooth range of your smartphone).
- Create a programmable timer: set your lights to switch on or off to the minute.
- Presence simulation: select the length of time you'll be away and the periods during which the lights will be on or off at random to protect your home.
Benefits :
Extremely easy to install, this DiO module combines Bluetooth Low Energy 5.0, Radio Frequency 433 MHz and ZIGBEE 3.0 technologies, allowing you to control your lights instantly and simultaneously with a switch, remote control or your smartphone.
